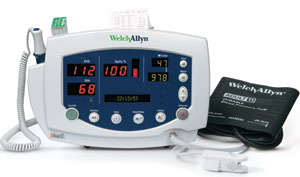

The Vital Signs Monitor 300 Series helps enhance your productivity by providing automated vital signs before, during and after procedures. The simple, push-button menu operation and bright display allows you to quickly learn and easily obtain the important information you need, so you spend more time with your patients.

Features

• Non-Invasive blood pressure monitoring
• Automatic blood pressure mode
• Separate modes for adult, pediatric and neonatal patients
• LCD Display simplifies menu navigation
• Bright LED display of vital signs readings
• Displayed clock
• Programmable alarms for high/low systolic, diastolic and pulse rate
• Built-in memory saves up to 99 sets of measurement data
• Simple, straightforward operation and intuitive menu navigation
• Optional: SureTemp Thermometry, Masimo or Nellcor pulse oximetry and integrated thermal printer
• Lightweight and portable, with a variety of mounting options

Technical Specifications
Display: 16 character liquid crystal display
Physical: Height: 6.6 in., Width: 10.0 in., Depth: 6.0 in. (16.8 x 25.4 x 15.2), Weight: Approximately 5.4 lbs (2.4 kg)

Non-Invasive Blood Pressure (NIBP)

Cuff Pressure Range: 0 to 270 mmHg, 0 to 36 kPa
Initial Cuff Inflation: Adult 160 mmHg (21.3 kPa), Pediatric 120 mmHg (16 kPa), Neonate 90mmHg (12kPa)
Systolic Range: Adult 30 to 260 mmHg (4 to 34.5 kPa), Pediatric 30 to 160 mmHg (4 to 21.3 kPa), Neonate 25 to 120 mmHg (3.3 to 16 kPa)
Diastolic Range: Adult 20 to 235 mmHg (2.7 to 31.3 kPa), Pediatric 15 to 130 mmHg (2 to 17.3 kPa), Neonate 10 to 105 mmHg (1.3 to 14 kPa)
MAP: Adult 20 to 255 mmHg (2.7 to 30 kPa), Pediatric 15 to 140 mmHg (2 to 18.7 kPa), Neonate 10 to 110 mmHg (1.3 to 14.7 kPa)
Blood Pressure Accuracy: Blood pressure measurement meets or exceeds ANSI/AAMI SP10:2002 Blood Pressure Determination Time: 20-45 seconds, typical Overpressure Cutoff: 295 to 330 mmHg (39.3 to 44 kPa)
Pulse Rate Range: 30 to 220 bpm
Pulse Rate Accuracy: ± 3 bpm or 3%

SpO2

Saturation Range: 1% to 100%
Accuracy: Adult/Pediatric 70-100% ±2 digits, Neonate 70-100% ±3 digits
Pulse Rate Range: 20 to 255 bpm
Pulse Rate Accuracy:
±2 bpm (without motion)
±3 bpm (with motion)
±3 digits (low perfusion)


Temperature

Measurement Range: 80F to 110F (26.7C to 43.3C)
Calibration Accuracy: ± 0.2F (±0.1C); meets or exceeds ASTME1112-00; EN12470-3:2000
Determination Time (approximate):
Predictive
-Oral, 4-6 seconds
-Pediatric Axillary, 10-13 seconds
-Adult Axillary, 10-13 seconds
-Rectal, 10-13 seconds
Monitored
-Oral/Rectal, 3 minutes
-Axillary, 5 minutes

Printer

-Thermal transfer printer

Power

• AC Power supply: 8 volts DC and 0.75 amperes
• Rechargeable sealed lead acid internal battery
• Operating time: 8 hours (Adult NIBP monitoring, at 3-minute intervals, with simultaneous and continuous monitoring of temperature and SpO2 values
• Battery recharge time: 90% in 12 hours
• Simultaneously operates monitor and charges battery when AC power adapter is plugged in
