**IQmark Diagnostic Station Software:
Please Note:
Midmark IQmark products require the IQmark diagnostic station software to run. If you already have the IQmark diagnostic station software from a previous unit you are NOT required to purchase another software packet. However, if this is your first IQmark unit you must purchase the software to properly run your equipment.

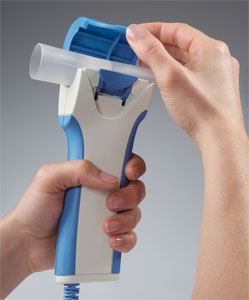

The Midmark IQspiro™ Digital Spirometry System combines a digital spirometer with innovative software solutions that make it fast and easy to capture, interpret and retrieve patient information. Our digital spirometer also features correct patient positioning that can optimize testing and an eject lever that saves time and alleviates handling of used mouthpieces.
- View real-time Flow/Volume Loop and Volume/Time graphs with fully customizable parameters
- Pre- and post-bronchodilator testing with automatic interpretation
- New eject lever alleviates handling of used mouthpiece
- Accurate and precise; meets or exceeds ATS 2005 Standards
- Lightweight, portable design weighs only 9 ounces
- Correct, ergonomic patient testing orientation
- Easy grasp, new T-shaped handle design for patient support and stability during testing
- Improved mouthpiece stability and protection with new easy-latch door design
- Easy to print full page reports on standard paper
Specifications
Usage: Easy to use, digital diagnostic spirometer
Graphics: Real time graphics – Flow-Volume, Volume-Time
Reports: Full size 8.5 x 11 inches, customizable and preprogrammed
Predicted equations:
Adult: Crapo (Crapo/Knudson compilation, aka ITS, ATS), Knudson (1976 & 1983 compilation), European
Community For Coal And Steel (ECCS) (1993), NHANES III (aka NLHEP, Hankinson), Morris,Roca
Pediatric: Knudson (1976 & 1983 compilation), Polgar (1971), Hsu, NHANES III, Zapletal, Eigen
Interpretation: NHANES III (NLHEP); ATS
Patient incentive screens: Candles, Thermometer, Tree & leaves, Tree, leaves & monkeys, Tree, leave & pinwheel
Disposable Mouthpiece (DM): Minimizes the chance of cross-contamination
EMR: Seamless EMR integration
Spirometry measurement principle: Fleisch Pneumotach – differential pressure reading of flow with a DM
Volume determined by flow integration
Measuring Ranges:
+/- 14 L/s – Flow
+/- 8 L – Volume
30 s – Maximum Measuring Time
Operating Conditions:
15°C to 40°C
10% to 90% Humidity, non-condensing
Analysis & Measurement:
Automatic Back Extrapolation calculation
Automatic Spirometry parameter calculation
Automatic comparison to published Spirometry Predicted Equations (Reference Values)
Automatic interpretation of test results
Parameters Measured: FVC, FEV1, FEV.5, FEV3, FEV6, FEV1/FVC, FEV3/FVC, FEV1/FEV6, FEV25%, FEV50%, FEV75%, FEV25-75%, FEV75-
85%, FEV200-1200, FEV0.5/FIV0.5, PEF, FIVC, FIV0.5, FIV0.5, FIF50%, PIF, Exp Time, Vext, MVV, MTV, RR, AT,
AT%, VC, ERV, IRV, TV
Patient Contact: Single-Use, Disposable Mouthpiece (Pneumotach)
Physical Characteristics
Dimensions: 7.75x2.5x1.75” , 191x64x44mm
Weight: 9 oz. USB version, 9.5 oz serial version w/ batteries
Calibration: 3-liter syringe
Serial version: Requires Two (2) 1.5V AAA alkaline batteries
USB Version: Does not require batteries
|
